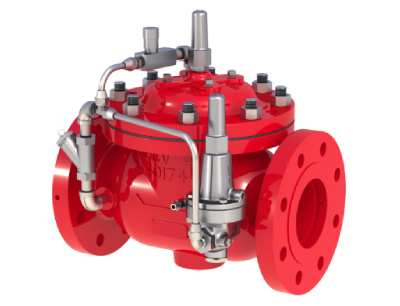

OCV Pressure Reducing Valve

OCV Deluge Pressure Reducing Valves

Description

Electrically or hydraulically, pilot controlled deluge/pre-action valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the hydraulic pressure drops in a water pressurized pilot line, releasing a hydraulic relay, or by an electric command. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. An emergency manual release valve is fitted as standard.

Typical Installation

The typical installation of the OCV 68 DE\EL\HRV\PR is as shown:

  • Electrically or Hydraulically Actuated, Anti-Columning, Pressure Reducing Deluge Valve

  • Wet Pilot Line

  • Fire Alarm Control Panel

  • Heat/Smoke/Other Detectors

  • CXPR Pressure Reducing Pilot

Features

  • High pressure (PN25/375psi), high flow deluge systems

  • Automatic or manual emergency actuation

  • Hazardous, flammable & explosion classified area fire suppression

  • Superior design featuring exceptionally low pressure losses at high flow rates

  • Low lifelong maintenance costs due to straightforward design

  • Applicable for water, seawater & foam

  • Factory trimmed for vertical & horizontal installations without modification

  • Extensive valve & trim materials selection and corrosion protection coating
